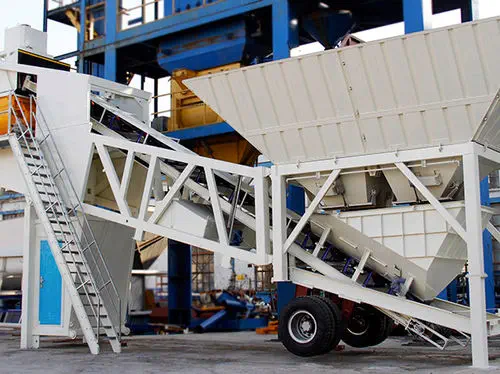

Заказчик из Нигерии заказал мобильный бетонный завод ZJY60.

Мобильный бетоносмесительный завод ZJY60 представляет собой завод по производству бетона, который объединяет хранение материала, взвешивание, транспортировку, смешивание, разгрузку и является лучшим выбором для мобильного строительства автомагистралей. Это лучший выбор для мобильного строительства автомагистралей, мостов. , порты, гидроэнергетика и другие проекты.

The construction of the mobile mixing plant is as follows:

Chassis: The cantilevered chassis contains the towing pins and parking legs for the trailer truck; the chassis houses the mixer, cement and water admixture weighing scales; the perimeter is equipped with inspection walkways, railings, etc.

Control room: The control room is located at the bottom of the chassis and contains the fully automatic control system of the mixing plant. The control system is the same as that of the stationary mixing plant.

The system is located at the rear end of the plant. The upper part is the aggregate (sand and stone) storage hopper, which can be divided into 2 or 4 compartments and is equipped with a raised plate to increase the storage capacity. The bottom part is equipped with a walking rear axle and working frame legs.

Belt conveyor frame: The frame is a truss structure connecting the mainframe chassis and the aggregate batching frame, with a belt frame inside; the mainframe, belt frame and batching frame are integrated to form the main structure of the mobile mixing plant.

The external parts are the cement silo and screw conveyor. The external parts are integral parts whether working or being transported, so they can be transported and disassembled as a whole.

Mixing machine: Generally the JS type forced mixer is used, which can mix liquid and dry concrete quickly and evenly.
